1104 4300KV


I bought this motor to try to build quadcopter, but currently 3 of the motor used for the Hovercraft Rev.2 project.

Description:
  • KV : 4300
  • Stator Dimension : Φ11mm x 4mm
  • Dimensions : Φ14.3 mm x 17.6mm
  • Idle Current :  0.5A
  • Maximum Current : 6-12 A (based on table below, 2.5A max, not sure if it is true)
  • Maximum Power 62.4 W
  • Prop Shaft : Φ1.5mm x 5mm
  • Interphase Resistance : 470mΩ
  • Mounting Holes : 8.5mm x 8.5mm (M1.4)
  • Weight(including wire) : 5.9g±0.2g
  • Recommended battery : 1-2S
  • Propeller size : 2-3 inches

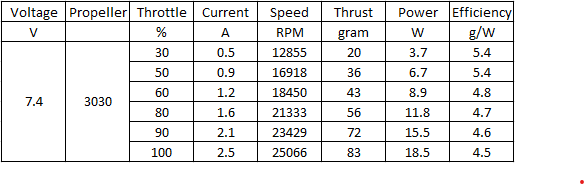

Motor data below copied from one of the AliExpress shop
